DESCRIPTION

The all-new Shanling EM5 offers varied connections for a centralised audio installation. The device features three different headphone outputs (6.35mm single-ended/ 4.4mm & balanced 4-pin XLR) along with two pre-amplified analogue outputs on RCA & XLR connectors. The headphone output stage is capable of delivering a comfortable power of 540mW. It takes advantage of an extremely clean and dynamic signal thanks to two TPA6120A2 chips from Texas Instruments. EM5 comes with customised closed Android OS enabling the EM5 to serve as a standalone music system. No need for a computer or complicated connections. Simply enjoy direct access to your music collection and streaming services.

The Shanling EM5 features an audio conversion stage that relies on a high-quality AK4493EQ chip. These newer generations of AKM 32bit chips feature "Velvet Sound technology" and CPAF low-pass filtering technology, ensuring a low level of distortion with a large dynamic range while ensuring clean sound reproduction. The digital to analogue circuit of EM5 is also accompanied by Panasonic Tantalum-Polymer capacitors, allowing high accuracy and less sensitivity to temperature fluctuations and therefore contributing to reduced signal-to-noise ratio. With 0.01% accuracy and great stability, thin-film resistors represent a key part of EM5’s design. Finally, the analogue signal at the output of the DAC circuit embeds an OP+BUF audio circuit, delivering a remarkably controlled and impressive output.

Shanling EM5 offers various possibilities of integration and ways of sending the digital audio signal to the EM5. Its digital circuit is accessible via a USB input, a coaxial input and an optical input. It also has wired network connectivity via RJ45 connector and even can read files from USB storage devices. Wireless connectivity is included allowing the EM5 to receive audio streams via a WiFi (2.4 & 5G) connection & two-way Bluetooth 4.2 onboard the circuit. Shanling's EM5 is compatible with DLNA & Airplay standards and supports high definition Bluetooth audio streaming with support for LDAC, LHDC, aptX HD, aptX and SBC formats.

The audio architecture of the Shanling EM5 supports playback of high-resolution files. EM5 is capable of reading DSD file format up to DSD256 and also supports 8x MQA decoding. MQA format allows sound reproduction as close as possible to the quality of the original recordings. EM5 supports 8X MQA playback from locally stored files, streaming apps and over USB input. Thanks to the AGLO (Android Global Lossless Output), music from all apps is processed precisely and at its full quality, without any degradation. Embedding the latest technology EM5 is Hi-Res Audio and Hi-Res Wireless Audio Certifications from the Japan Audio Society. Thanks to 4 different gain settings, EM5 can be easily paired with a wide range of headphones, from sensitive IEMs to demanding full-size headphones.

Built and designed keeping in mind ease of use, the EM5 comes bundled with Android OS and features a 4.7 HD touchscreen. The touchscreen displays vivid colours and offers an optimal visual experience with an intuitive and easy user experience. The touch interface makes it easy to control the Android OS and allows one to take advantage of its many streaming applications. EM5 also comes with a companion app called “Eddict Player App”. The app lets you take complete control over the EM5 from your smartphone or tablet, offering seamless display mirroring, giving you access to all the features. EM5 also features a gold plated volume wheel for a touch of luxury.

To achieve the highest level of audio performance in Shanling EM5, the engineers decided to split the power supply between two sections. Analogue components are powered by a small and highly efficient toroidal transformer, combined with high-performing German capacitors, helping to achieve cleaner and smoother sound. Two Japanese KDS active crystal oscillators in conjunction with Shanling’s improved algorithm provides a more accurate clock signal and reduces jitter. All this is housed in a chassis that features an Air Gap design, allowing for a faster and more effective heat dissipation effect in the compact body of EM5.

SPECS

SPECIFICATIONS

DIMENSIONS	238x188x55mm
DISPLAY	Touchscreen 4.7-inch 720 X 1280 IPS
SYSTEM	Closed Android
SUPPORTED FORMATS	DSF / DFF / DXD / APE / FLAC / WAV / AIFF / AIF / DTS / MP3 / WMA/ ACC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8 / ISO (DST not supported)
HI-RES SUPPORT	32bit / 768kHz, DSD256 Native, DSD512 software
ADJUSTABLE GAIN	4 Gain Stages
DAC	AKM AK4493EQ
MICRO SD CARD SUPPORT	Upto 2 TB
DIGITAL FILTERS	Upto 2 TB
POWER SUPPLY	230V

BLUETOOTH

VERSIONS	4.2
TRANSMITTER	LDAC, LHDC, aptX HD, aptX, SBC
RECEIVER	LDAC, SBC

SINGLE-ENDED

OUTPUT POWER	Low: 0.8V @ 32Ω (15.99mW @ 32Ω) Medium: 1.35V @ 32Ω (56.56mW @ 32Ω) High: 2.5V @ 32Ω (195mW @ 32Ω) Turbo: 4.3V @ 32Ω (570mW @ 32Ω)
SIGNAL TO NOISE RATION	118dB @ 32Ω (A-Weighted Turbo Gain)
CHANNEL SEPERATION	70dB @ 32Ω
DYNAMIC RANGE	118dB @ 32Ω (A-Weighted Turbo Gain)
DISTORTION	0.0027% @ 32Ω (A-Weighted @ 1V)
OUTPUT IMPEDANCE	<0.80Ω

BALANCED

OUTPUT POWER	Low: 1.4V @ 32Ω (61mW @ 32Ω) Medium: 2.3V @ 32Ω (165mW @ 32Ω) High: 4.3V @ 32Ω (577mW @ 32Ω) Turbo: 7.2V @ 32Ω (1620mW @ 32Ω)
SIGNAL TO NOISE RATION	120dB @ 32Ω (A-Weighted Turbo Gain)
CHANNEL SEPERATION	106dB @ 32Ω
DYNAMIC RANGE	110dB @ 32Ω (A-Weighted Turbo Gain)
DISTORTION	0.0009% @ 32Ω (A-Weighted @ 1V)
OUTPUT IMPEDANCE	<1.60Ω

IN THE BOX

BOX CONTENTS

1. Shanling EM5

FAQs

: The warranty period of the Shanling EM5 is of 1 year. In order to claim warranty, please visit our Shanling Warranty Page here. We are very helpful guys, just saying
: Shanling EM5 Support streaming Spotify, Tidal, Qobuz.
: The Shanling EM5 comes with the latest Bluetooth version 4.2.
: Yes, the Shanling EM5 does support Bluetooth codecs like LDAC, LHDC, apt X HD, apt X and SBC.
: The Shanling EM5 is loaded with AKM AK4493EQ DAC Chip.
: Yes, the Shanling EM5 does support 4.4mm and XLR balanced output. Now enjoy your favourite music with better sound.
: Yes, the Shanling EM5 does support WiFi connectivity.
: Yes, support does support MQA.
: The Shanling EM5 supports Optical, Coaxial and USB input.
: The Shanling EM5 has Micro SD Card Slot supports upto 2TB.

Warranty

Don't sweat it, this Shanling EM5 comes with a 1 year warranty from Shanling that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

Read more about Shanling's warranty in India.

DESCRIPTION

STANDALONE AMPLIFIER, PREAMPLIFIER AND STREAMING CENTRE

VELVET SOUND TECHNOLOGY FUSED WITH HIGH-QUALITY COMPONENTS FOR REMARKABLE SOUND

MULTIPLE CONNECTIVITY OPTIONS ALLOWING FOR A SEAMLESS MUSIC EXPERIENCE

HI-RES CERTIFIED DEVICE FEATURING AGLO TECHNOLOGY CAPABLE OF PLAYING DSD & MQA FILES

FEATURING ANDROID OS WITH A TOUCHSCREEN INTERFACE AND A DEDICATED APP

AIRGAP DESIGN AND DISCRETE POWER SUPPLY FOR JITTER-FREE AUDIO

SPECS

FAQs

Warranty

1 Year Warranty

Shanling

Price

Collections

Shanling - EM5

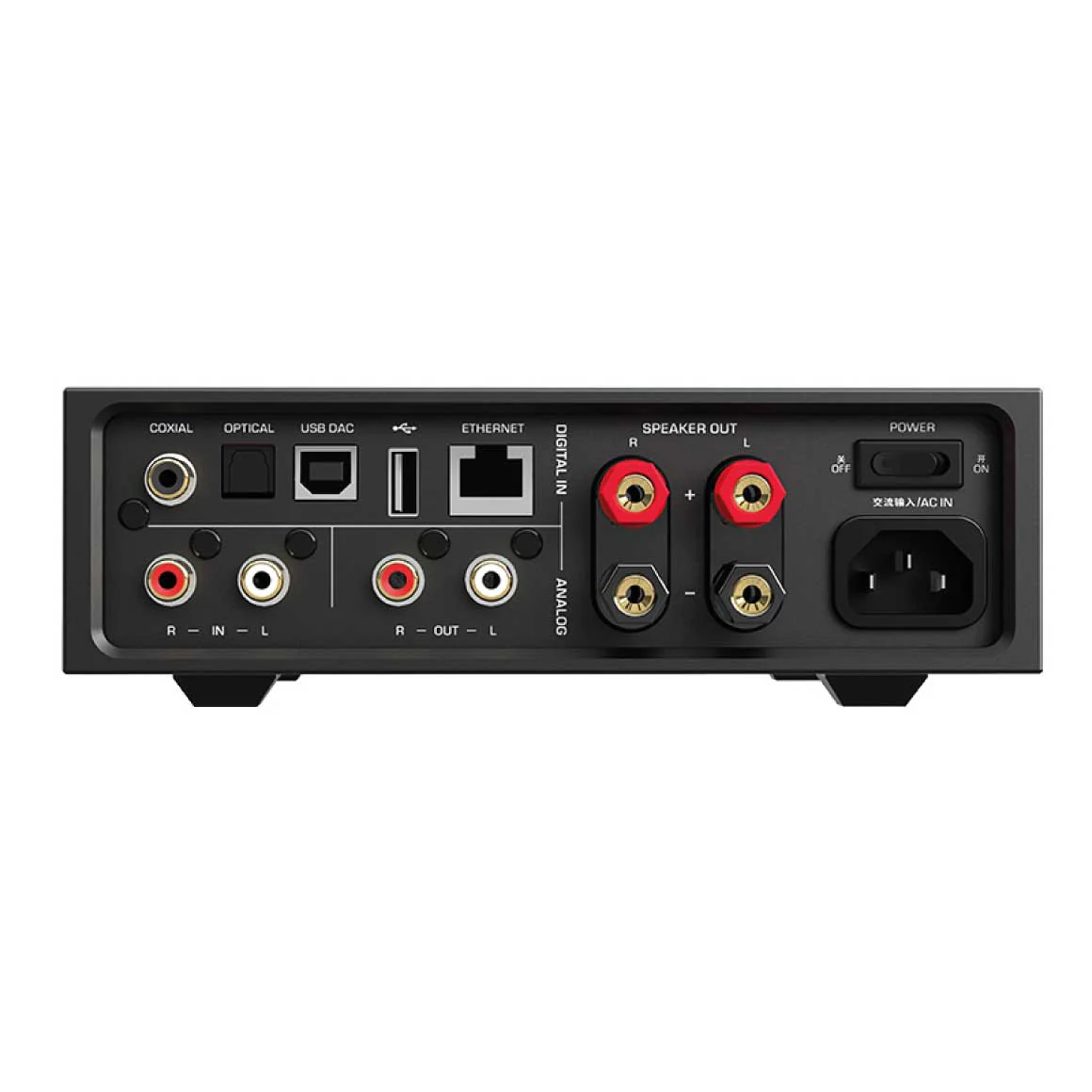

Shanling - EA5

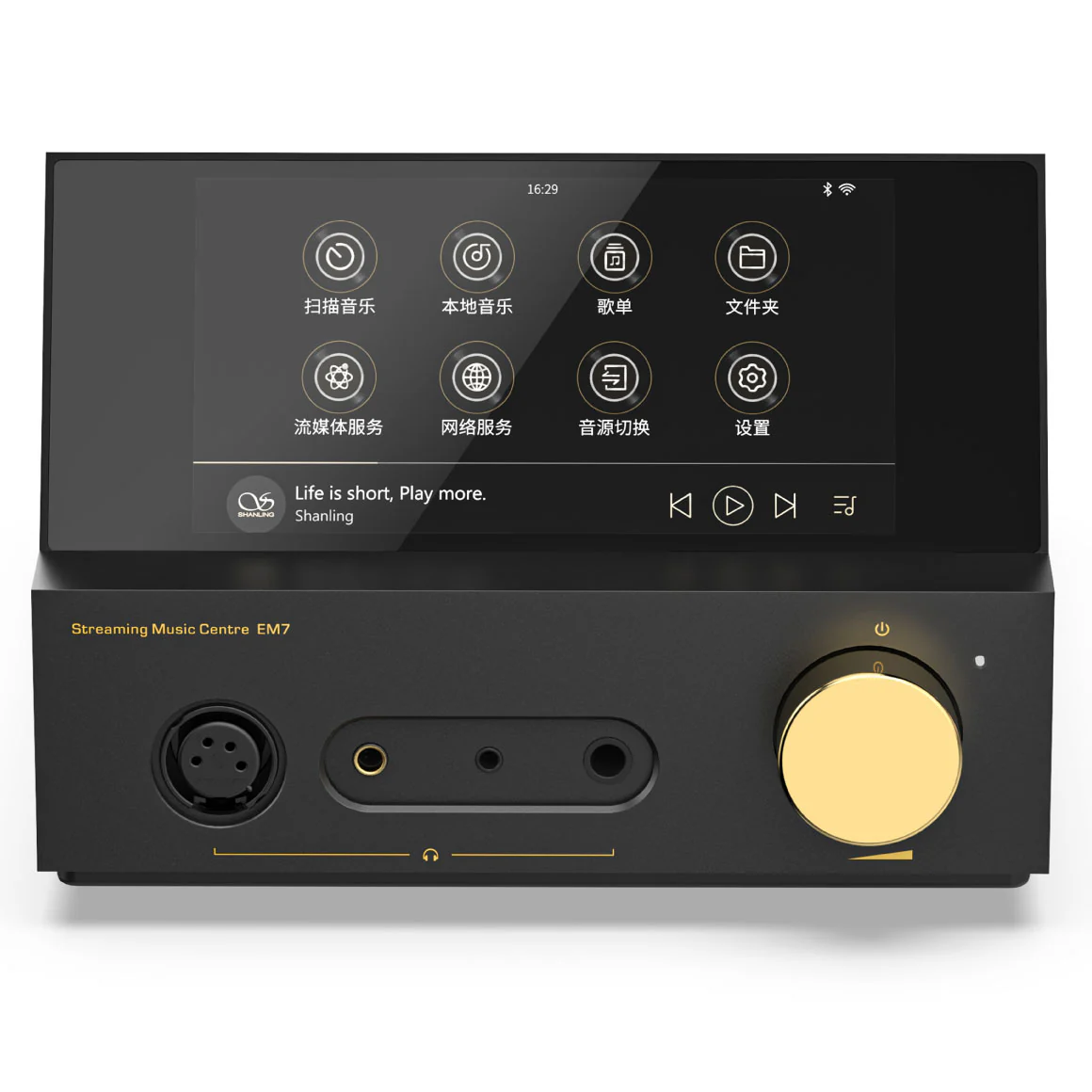

Shanling - EM7

Shanling - ET3

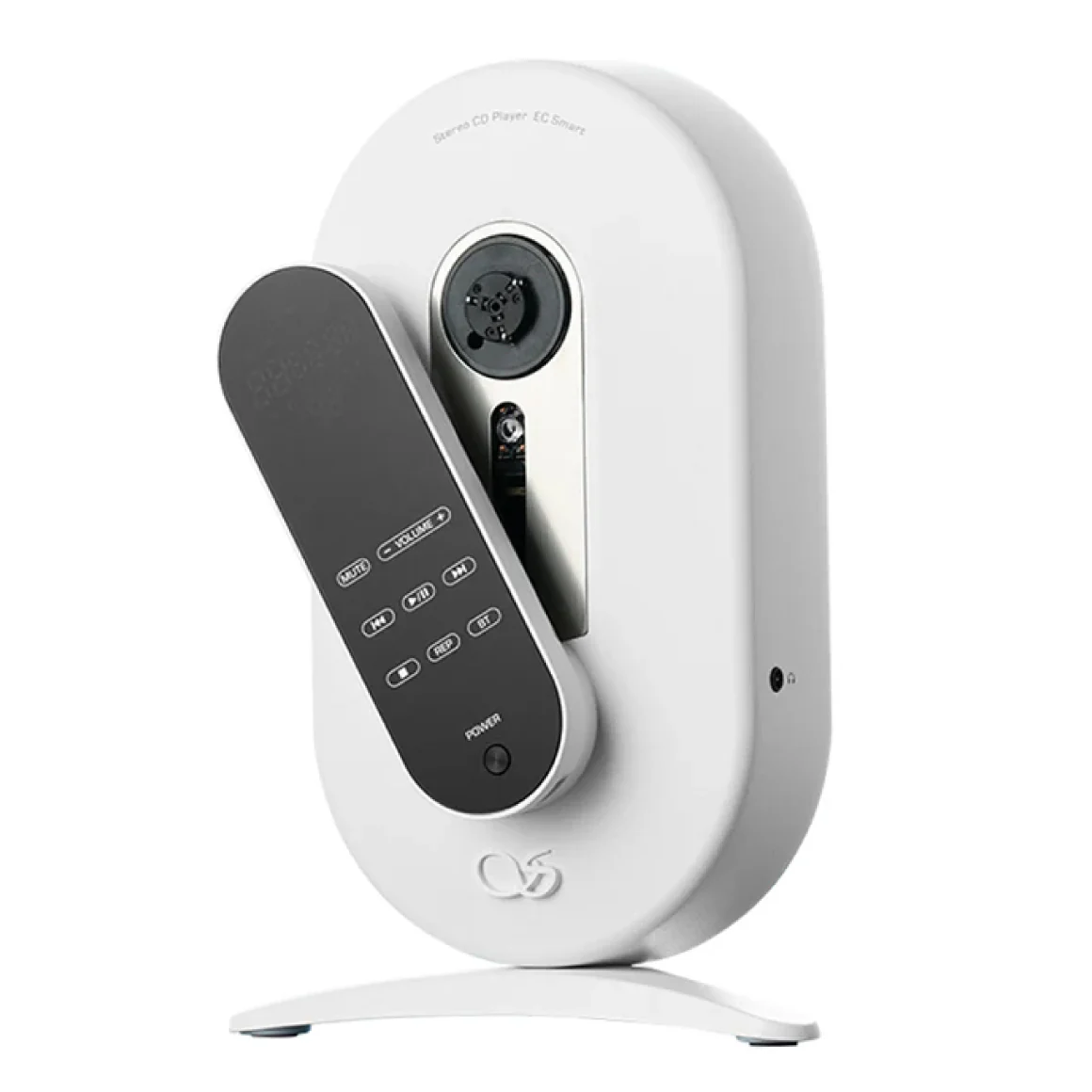

Shanling - EC Smart

Shanling - M30 Pro

Shanling - M8T

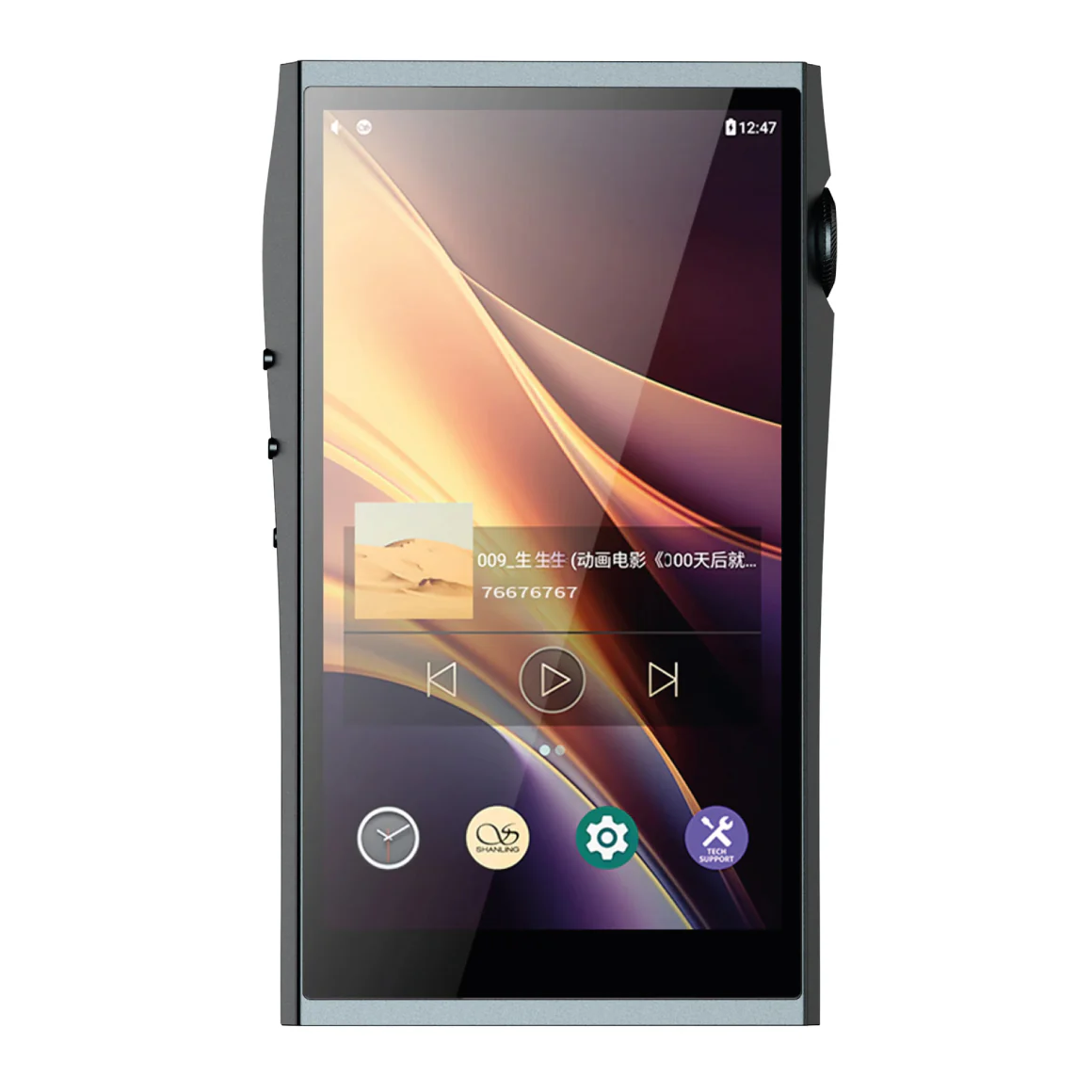

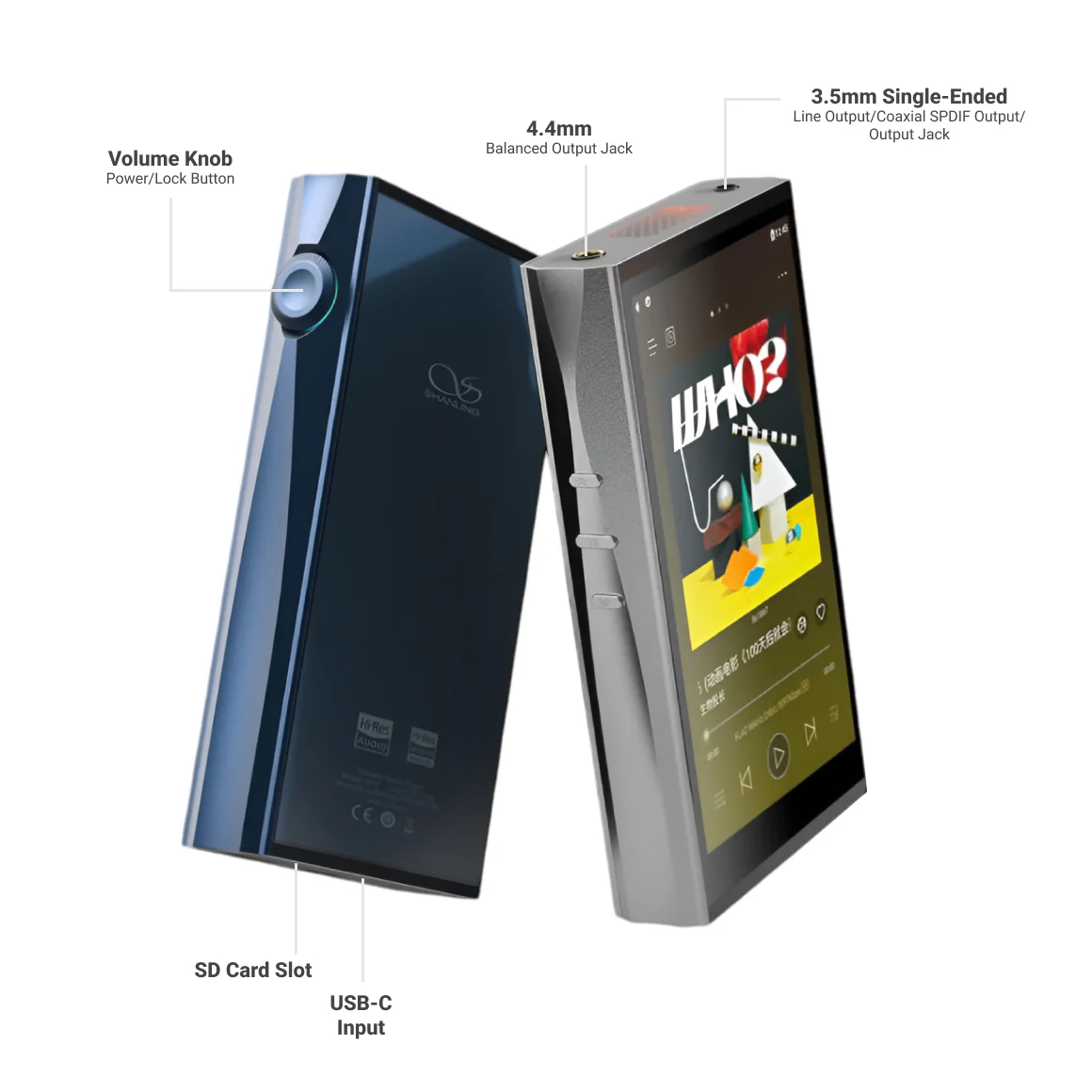

Shanling - M7T

Shanling - UA7

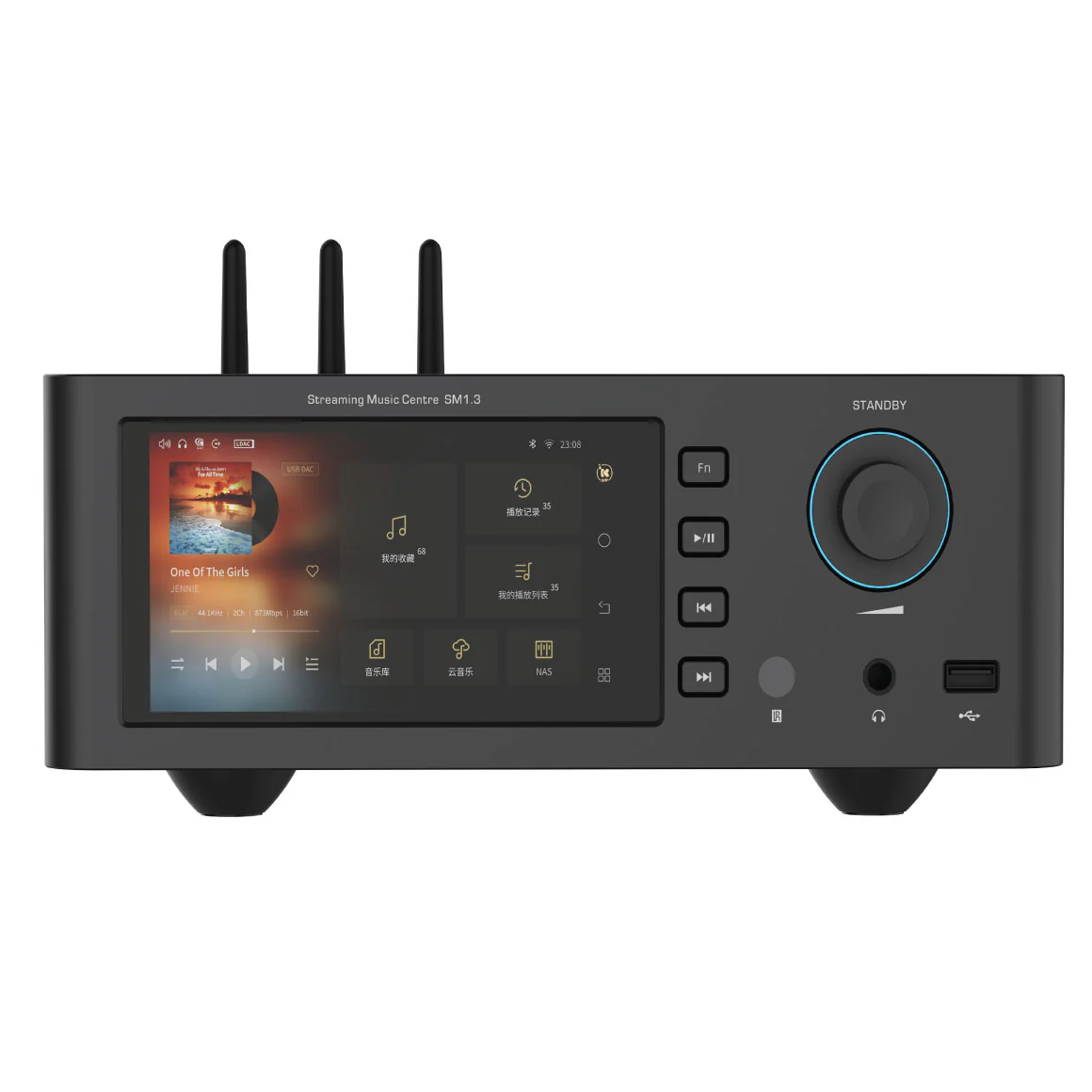

Shanling - SM1.3

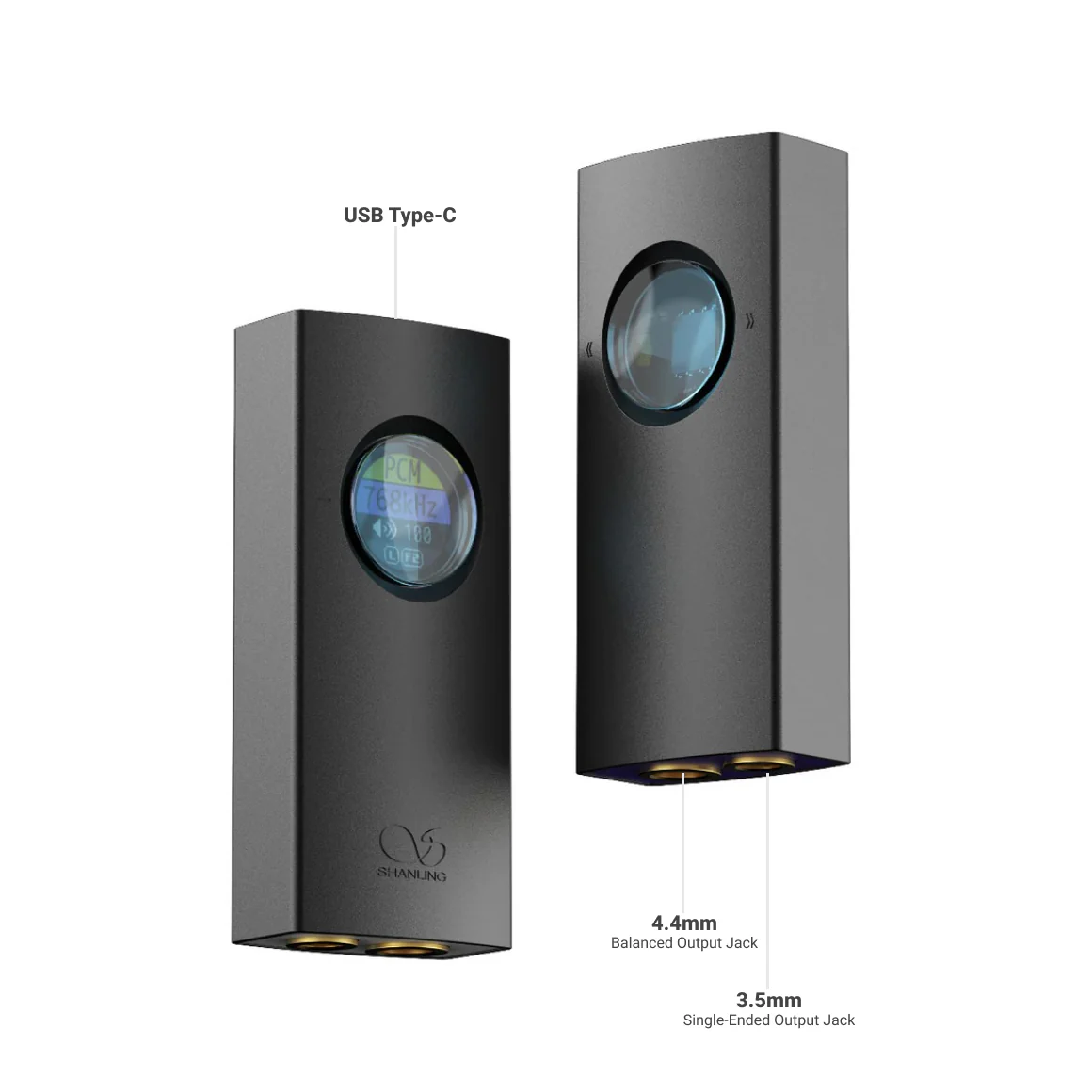

Shanling - UA1 II

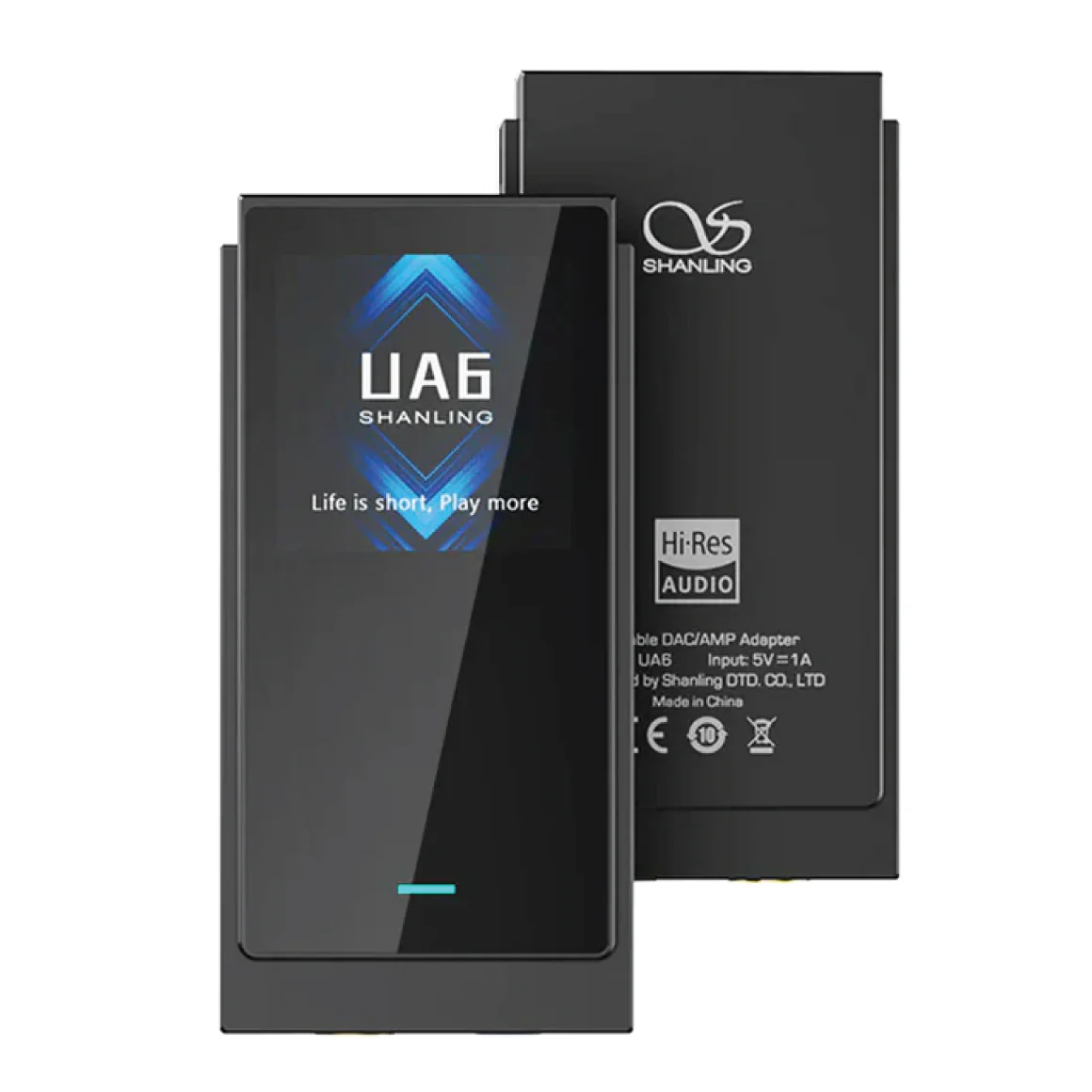

Shanling - UA6
